We offer monofilament polyester screen (low-elongation) with a wide range of mesh counts and significant advantages compared with traditional polyester mesh.
Material: 100% polyester (nylon available if needed)
Weaving: Plain weave (Twill weave available if needed)

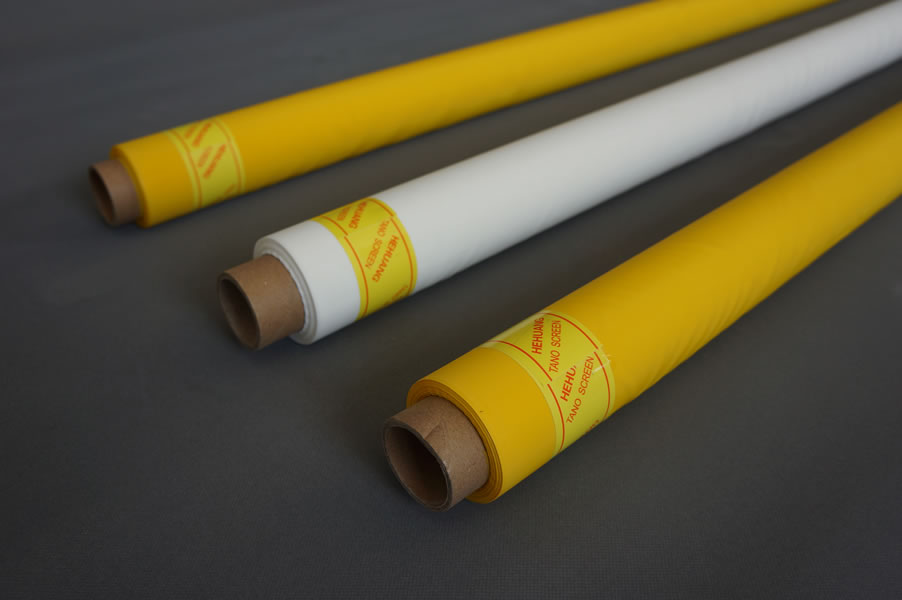

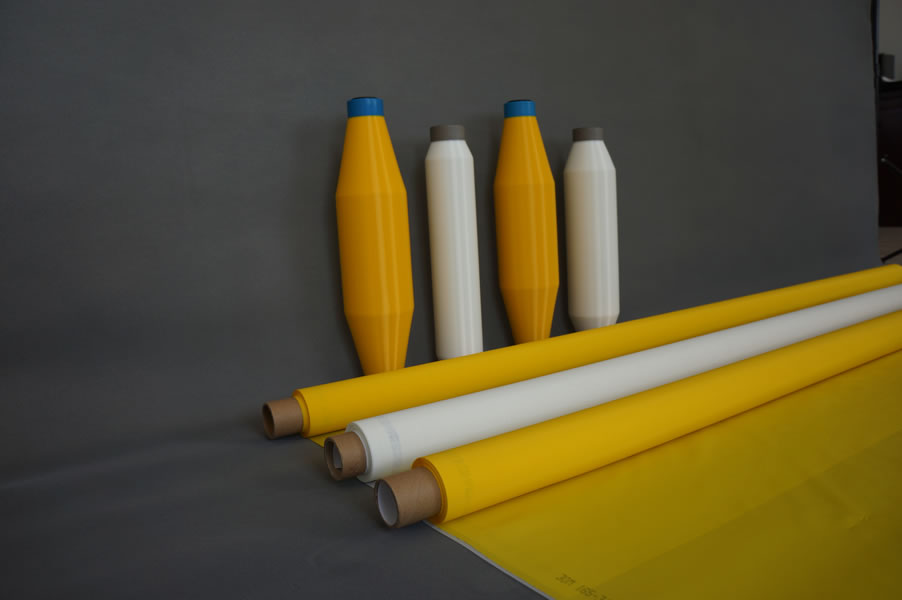

Color: white/yellow
Feature:
high durability and best tensility;
nice appearance, standard size;
clean and never depigment.
Application:
Widely used in filtering, textile printing and dyeing, printing plate, electronic printing, ceramics, glass printing and other industries.
Mesh Count Diameter (Mesh/cm μm) | Mesh Count (Mesh/inch) | Weave | Aperture (μm) | Thread Diameter (μm) | Opening (%) | Thickness (μm) | Thickness Tollerance (+/- μm) | Theoretical Ink (cm3/m2) | Weight (g/m2) |
8-250PW(HD) | 20 | 1:1 | 1000 | 250 | 64 | 475 | 20 | 304 | 117 |
12-250PW(HD) | 30 | 1:1 | 583 | 250 | 49 | 490 | 20 | 228 | 176 |
13-140PW(T) | 33 | 1:1 | 680 | 140 | 66 | 282 | 14 | 189 | 57 |
16-200PW(HD) | 41 | 1:1 | 440 | 200 | 46 | 370 | 18 | 172 | 148 |
18-170PW(T) | 46 | 1:1 | 385 | 170 | 48.5 | 302 | 16 | 146 | 116 |
19-90PW(S) | 48 | 1:1 | 436 | 90 | 69 | 140 | 10 | 96 | 38 |
20-120PW(T) | 51 | 1:1 | 380 | 120 | 58 | 210 | 11 | 122 | 76 |
21-140PW(HD) | 54 | 1:1 | 333 | 140 | 49 | 245 | 12 | 119 | 96 |
24-100PW(S) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 |
24-120PW(T) | 60 | 1:1 | 294 | 120 | 49.6 | 220 | 11 | 109 | 81 |
24-140PW(HD) | 60 | 1:1 | 270 | 140 | 41 | 265 | 13 | 111 | 110 |
29-120PW(T) | 74 | 1:1 | 220 | 120 | 41 | 218 | 11 | 89 | 100 |
32-64PW(S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 |
32-100PW(T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 |
36-90PW(T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 |
39-55PW(S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 |
39-64PW(T) | 100 | 1:1 | 170 | 64 | 54 | 94 | 7 | 60 | 37 |
39-70PW(HD) | 100 | 1:1 | 180 | 70 | 52 | 119 | 7 | 62 | 41 |
40-80PW(T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 |
43-80PW(T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 |
47-55PW(S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 |
48-70PW(T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 |
53-55PW(S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 |
54-64PW(T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 |
59-55PW(S) | 150 | 1:1 | 115 | 55 | 46 | 92 | 8 | 39 | 44 |
51-70PW(HD) | 130 | 1:1 | 119 | 70 | 38 | 116 | 6 | 45 | 59 |
61-64PW(T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 |
64-55PW(S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 |
64-64PW(T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 |
68-55PW(S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 |
68-64PW(T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 |
72-48PW(S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 |
72-55PW(T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 |
77-48PW(S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 |
77-55PW(T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 |
80-48PW(T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 |
90-48PW(T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 |
95-48PW(T) | 240 | 1:1 | 50 | 48 | 22.5 | 83 | 4 | 18.9 | 51 |
100-40PW(T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 |
110-40PW(HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 |
120-31PW(S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 |
120-34PW(T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 |
120-40PW(HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 |
130-34PW(T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 |
140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 |
140-34PW(T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 |
150-31PW(S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 |
150-34PW(T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 |
165-31PW(T) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 |
165-27PW(S) | 420 | 1:1 | 30 | 27 | 23.5 | 44 | 2.5 | 8.5 | 29 |
180-27PW(S) | 460 | 1:1 | 23 | 27 | 16 | 43 | 2.5 | 7 | 31 |
PW:(Plain Weave); S、T、HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request. |
